PHASED ARRAY / TOFD

Turgen are the UAE’s Authorized Distributor for all Technology Design Ltd, including the popular Next Generation TD Focus-Scan RX.

Technology Design specializes in the design, development and manufacture of state-of-the-art Ultrasonic data acquisition systems. We also combine Phased Array, ToFD and Pulse Echo into a convenient and powerful range of instruments. These are designed to suit the widest spread of applications including ZONAL DISCRIMINATION and are supplied worldwide.

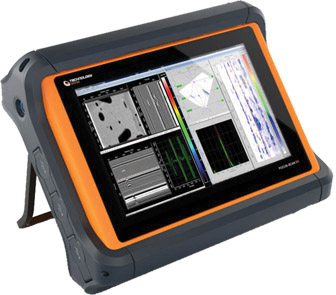

TD Focus-Scan RX

The NEW TD Focus-Scan RX is our next generation ruggedized portable phased array flaw detector, delivering everything the operator requires to carry out inspections in the Oil & Gas, Power Generation, Manufacturing and Aerospace markets.

The Windows based operating systems performs at gigabit Ethernet speeds and supports 2D matrix probes as well as linear array. The systems are available in a variety of configurations and comes complete with Eclipse Beam Tool on-board. Very powerful and easy to deploy on a daily basis.

TD Focus-Scan RX
TD Focus-Scan RX
FEATURESAPPLICATIONSTECHNIQUES

 ·  Configurations available up to 64/128PR

·   8 Independent Conventional Ultrasonic Channels

·   2 Axis Encoding, video tracking

·   Simultaneous PA and ToFD data collection

·  On-Board 2-axis Motor Control Drive Unit

·   Extensive On-Board Analysis Tools

·   Powerful Reporting Functions

·   Integrated ESBeamTool®

·   User Replaceable Batteries (hot swappable)

·   128GB SSD Storage

•   Pressure Vessels

•   Pipeline Welds

•   Composites

•   Structural Welds

•   Forgings & Castings

•   Turbine Disks & Blades

•   Aircraft Components

•   Hydrogen Damage Surveys

•   Corrosion Surveys

·   Phased Array

·   TOFD

·   General Flaw Detection

· Weld Zone Discrimination

·  Corrosion Mapping

·  2D Matrix Arrays

·  Dual Linear Arrays

·   Pulse Echo

TD Handy-ScanRX

Hand-held multifunction & portable phased array ultrasonic system.

The TD Handy-ScanRX was born out of the demand for an inexpensive ultrasonic system that delivers Phased Array, ToFD and Pulse Echo, Corrosion Mapping and Weld Zone Discrimination in a single integrated portable package.

TD Handy-ScanRX
TD Handy-ScanRX
FEATURES APPLICATIONS TECHNIQUES

·      Highly Portable

·      Sunlight Readable Screen

·      Extensive Analysis Tools

·      Powerful Reporting Functions

·      Removable Battery

·      2 Axis Encoder; Video tracking

·      Import setups from ESBeamTool®

·      x 8 Conventional Channels

·      32/64 Phased Array

·      Simultaneous PA, ToFD and/or PE data collection

·      128GB SSD storage

•   Pressure Vessels Welds

•   Pipeline Welds

•   Corrosion Surveys

•   Turbine Disks & Blades

•   Complex Geometries

•   Forgings & Castings

•   Aircraft Components

•   Hydrogen Damage Surveys

·   Phased Array

·   TOFD

·   Pulse Echo

·   Corrosion Mapping

·   Weld Zone Discrimination

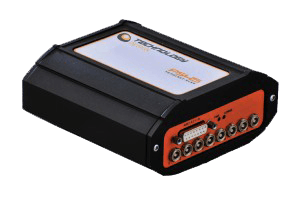

TD PS45 Pocket-Scan

Multi-channel conventional UT system which is Ethernet connectable to your laptop.

The Ethernet connection simplifies the link between laptop and Pocket-Scan and eliminates the need for a PCMCIA type II card slot. The Ethernet system requires minimal initial setup with no special drivers and will communicate with any Ethernet enabled PC.

TD PS45 Pocket-Scan
TD PS45 Pocket-Scan
FEATURESAPPLICATIONSTECHNIQUES

·   Portable yet Highly Capable

·   Ethernet Link – PS45 to Laptop

·   Extensive Off-line Analysis Tools

·   Built-in Reporting

·   2 Axis Encoder & Video Tracking

·   Up to x32 Conventional Channels

·   Pressure Vessel Welds

·   Pipeline Welds

·   Structural Welds

·   Hydrogen Damage Surveys

·   Corrosion Surveys

·   Forgings & Castings

·   Aircraft Components

·   Complex Geometries

·   TOFD

·   Pulse Echo

·   Corrosion Mapping

·   Weld Zone Discrimination

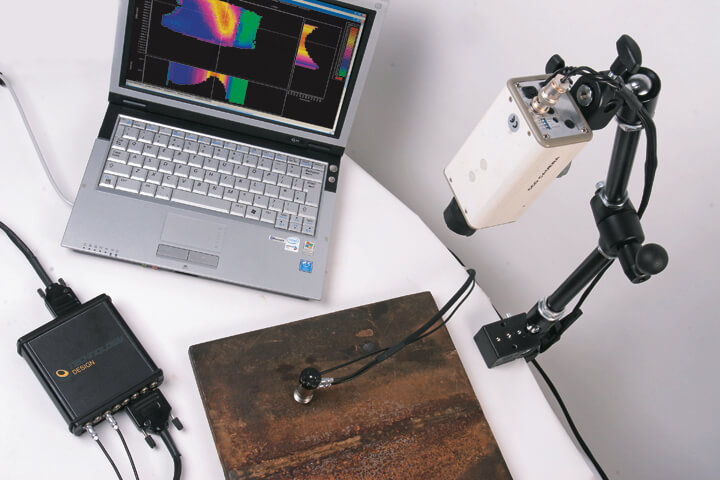

TD Corrosion Mapping Kit

Includes CCTV camera for video positional encoding.

The kit is compact and provides connections for D-type and MIL encoder connectors. Using our Pulse echo software with the ‘Camera’ option in the scanner setup, we provide an easy alternative to scanning with bulky x/y scanners.

TD Corrosion Mapping Kit
TD Corrosion Mapping Kit
COMPLETE KIT CONTENTS OF KIT

•  No mechanical scanners

•  Free-hand scanning

•  Easy set-up

•  Works with all TD systems

·   Articulated ‘Magic Arm’

·   CCTV Camera with lense

·   Infrared Filter

·   Infrared LED

·   Probe (Twin Crystal, 5Mhz, 0º)

·   2m Umbilical Cable (for attachment to any of our systems)

·   2m Co-axial UT Cable

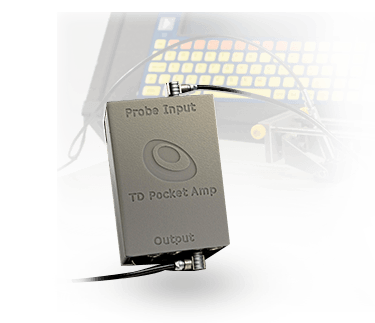

TD Pocket-Amp

Battery powered 4-channel UT pre-amplifier.

Our battery powered multi-channel UT pre-amplifier is a compact, pocket sized, 4 channel unit achieving in excess of 70 hours of continuous use on a 9v (1 x PP3) battery.

TD Pocket-Amp
TD Pocket-Amp
ULTRASONIC PERFORMANCE
Number of Channels4
Input Impedance50 Ohms
Output Impedance50 Ohms
Gain20dB (40dB available)
Noise Performance1.2nV/(Hz)1/2(typical)
AC CoupledInput and Output
Overvoltage ProtectionInput and Output
Bandwidth25MHz @ 20dB gain
Input Signal range100mV (20dB)
Output Signal range1Vpp

TD Scan Software

Battery powered 4-channel UT pre-amplifier.

Our battery powered multi-channel UT pre-amplifier is a compact, pocket sized, 4 channel unit achieving in excess of 70 hours of continuous use on a 9v (1 x PP3) battery.

TD Scan Software
For More Information

Accessories

We offer a range of probes and spares for use with our products.

Our probes and spares are manufactured by various specialists who are all well established and recognized for their high-quality products.

  • Phased Array Probes & Accessories
  • Phased Array Connection Adapters
  • ToFD Probes
  • Conventional Probes
  • Encoders
  • Scanners
  • Cables
  • System boards
  • Scanners
Accessories
